Outline

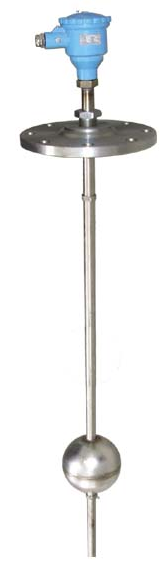

The float level controller output 4 ~ 20mA standard current signal and III supporting electric meter can achieve the level of automatic detection, control and recording.
Level transmitter for oil refining, chemical, paper, food and pharmaceutical industries, also apply
Sewage treatment and all kinds of open or pressurized containers medium level measurement, for underground storage tanks and high-level
Tank level measurement is particularly ideal.
Level transmitter from the stainless steel or anti-corrosion material, and has a protective properties flameproof。
Feature
● Easy installation, simple structure
● Reliable performance
● Corrosion, explosion-proof
□ Main Specifications
Measuring range: L: 0 ~ 6000mm within arbitrarily selected by the user.
output signal：4~20mA DC
Accuracy：±10mm
Medium density：≥0.7g/cm3
Medium viscosity：≤1.25 St（1St=10- 4m2/S）
Operating temperature：—40~+60℃
Load Impedance：620Ω
Supply voltage：24VDC
Outlet connection: internal threadM20×1.5
Connecting flange：HG20592~20635－97 DN150
PN1.6、2.5MPa，Other flange standards such as GB, HGJ, ANSI and other users specify
Explosion-proof mark: flameproofExIIBT4
Float material: 1Cr18Ni9, polytetrafluoroethylene
