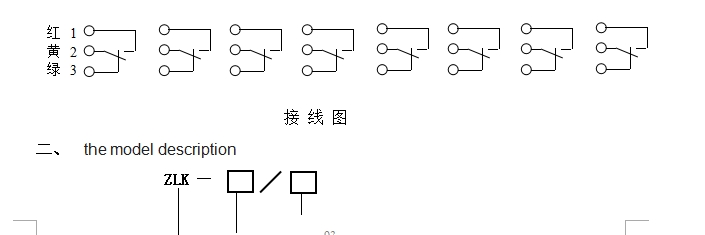

一、 the installation and adjustment
1、 the magnetic memory switch group must be fixed firmly on the relay holder, and marked with the registration mark.
2、 need to change the location of a signal can be individually adjusted to the memory switch, but do not easily switch the entire group will be removed, so as not to change the other switching position, cause unnecessary trouble.
3、 the contact axis basis having the direction of installation drawings.
Users in compliance with the conditions of use of the rules, from the date of shipment from the factory in two years, or be put into operation within one year (the above-mentioned period, whichever occurs first), when due to poor manufacturing and breakage or does not work, the company responsible for the repair or replacement。

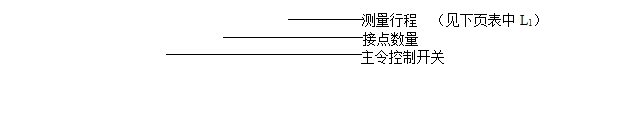

三、Ordering Information
1、 indicating the guide vane position switch specifications (or servomotor stroke).
2、 the required contact (switch) Number.
3、 other special requirements.
（mm）
型号 | ZLK—8/600 | ZLK—8/1000 ZLK—12/1000 | ZLK— 8/1200 ZLK—12/1200 |
L | 660 | 1120 | 1320 |
L1 | 540 | 1000 | 1200 |
Electromagnetic flowmeter performance specifications
Piping electromagnetic flowmeter as well as insert formula electromagnetic flowmeter of Working temperature: 0-80 ℃, working pressure: 0-1.6Mpa, work a flow rate of in 0.03-10m / s, measuring accuracy is not temperature of the measured medium of, pressure, viscosity, Effect of Planting Density (including the liquid - solid two-phase) and other physical parameter variations, water quality in there are sediment did not even problem the..
Converter power supply there are 220V AC and 24V DC power supply optionally wherein the a can be, passive switch contact output arbitrary can be set.
Converter wiring diagram
（mm）
型号 | ZLK—8/600 | ZLK—8/1000 ZLK—12/1000 | ZLK— 8/1200 ZLK—12/1200 |
L | 660 | 1120 | 1320 |
L1 | 540 | 1000 | 1200 |
Electromagnetic flowmeter performance specifications
Piping electromagnetic flowmeter as well as insert formula electromagnetic flowmeter of Working temperature: 0-80 ℃, working pressure: 0-1.6Mpa, work a flow rate of in 0.03-10m / s, measuring accuracy is not temperature of the measured medium of, pressure, viscosity, Effect of Planting Density (including the liquid - solid two-phase) and other physical parameter variations, water quality in there are sediment did not even problem the..
Converter power supply there are 220V AC and 24V DC power supply optionally wherein the a can be, passive switch contact output arbitrary can be set.
Converter wiring diagram

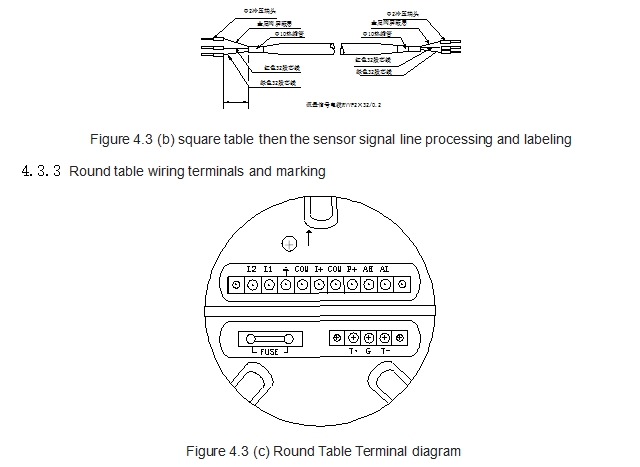

4.3.2 Square table then the sensor signal line processing and labeling
Round table each wiring terminals defined
I+： | Flow current output |
COM： | Current output ground |
P+： | Bi-directional flow frequency (pulse) output |
COM： | Frequency (pulse) output to |
AL： | Alarm output |
AH： | Limit alarm output |
COM： | Alarm output ground |
FUSE： | Input Power Fuse |
T＋： | Communication input |
T－： | Communication input |
G： | RS232 communication to |
L1： | 220V（24V+）Power input |
L2： | 220V（24V-）Power input |
