1) measuring range: 1% to 150% of rated current value
2) Rated secondary current: 5A, 1A
3) Accuracy Grade: 3
4) Rated capacity:
Rated current 5A, rated capacity (unit: VA) as follows: 2.5; 3.75; 5; 6.25; 7.5; 10; 12.5; 15; 20; 25; 30; 40; 50; 60. Power factor: COSΦ = 0.8,1.0
Rated current 1A, Rated capacity (unit: VA) as follows: 0.2; 1; 2.5; 3.75; 5; 6.25; 7.5; 10; 12.5; 15; 20; 25; 30; 40; 50; 60. Power factor: COSΦ = 0.8,1.0

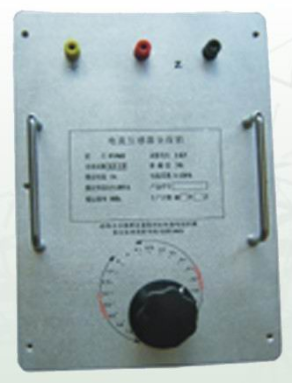

5）The current transformer load box for hand / self-dual, with LCD display, RS232 interfaces
